Description of Product Performance

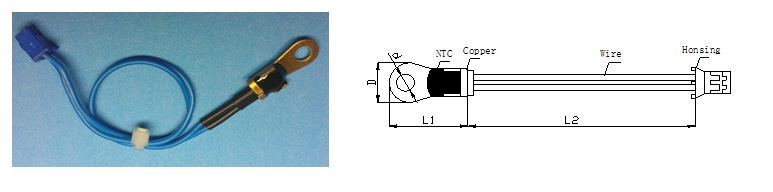

| Code | d | D | L1 | L2 | |||
|
Dimension |
Customized | ≥50mm | |||||
| Product Performance | 1.Wire specification：By Customer's Requirements. | ||||||
| 2.Insulation：DC500V Min 100MΩ,3Sec | |||||||
| 3.Operating temperature range：-30℃～105℃ | |||||||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||||
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | |||||||
| 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | |||||||
| Product Usage | apply to power supply temperature control module |
Description of Product Performance

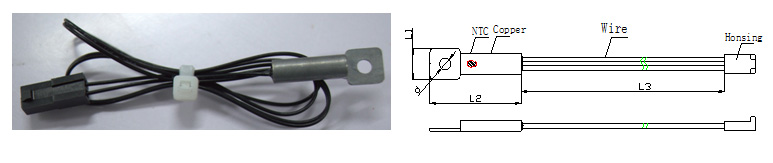

| Code | d | L1 | L2 | L3 | |||
|
Dimension |
3.6mm | 9.6mm | 29.0mm | ≥50mm | |||
| Product Performance | 1.Wire specification：By Customer's Requirements. | ||||||
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | |||||||
| 3.Insulation：DC500V Min 100MΩ,3Sec | |||||||
| 4.Operating temperature range：-30℃～105℃ | |||||||
| -30℃～125℃ | |||||||
| -30℃～150℃ | |||||||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||||
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | |||||||
| 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | |||||||
| Product Usage | apply to mosquito killer temperature control module |
Description of Product Performance

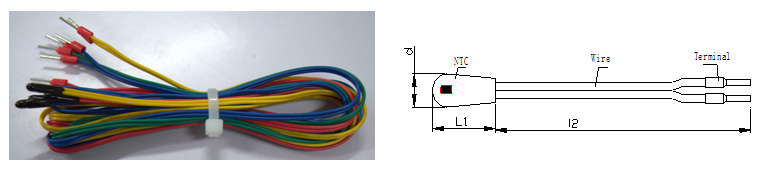

| Code | d | L1 | L2 | |
|
Dimension |
Customized | ≥50mm | ||
| Product Performance | 1.Wire specification：By Customer's Requirements. | |||
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||||
| 3.Insulation：DC500V Min 100MΩ,3Sec | ||||
| 4.Operating temperature range：-30℃～105℃ | ||||
| -30℃～125℃ | ||||
| -30℃～150℃ | ||||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | |||
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
| 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
| Product Usage | apply to fire equipment temperature control module | |||
